@react-packages/simple-images-slider

It’s React component to show an images slider. The images slider displays the list of images but we can only see some few number of all images at a time. To see the other images, we do sliding. This kind of component is also called “carousel”.

@react-packages/simple-images-slider is named “simple” because of without animation when sliding the images. This component provides two buttons for sliding the images.

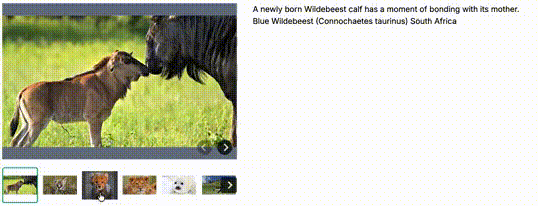

The following video shows how it works:

How to use it

To use it with the default options, follow the example below:

import SimpleImagesSlider from '@react-packages/simple-images-slider';
...
<SimpleImagesSlider iamges={imageSrcArray}  ... />
...

If you want change some options, follow the example below:

import {createComponent} from '@react-packages/simple-images-slider';
const SimpleImagesSlider = createComponent({
    //options
});
...
<SimpleImagesSlider iamges={imageSrcArray}  ... />
...

The complete example, you can find here.

createComponent options

createComponent has one parameter whose object type. The object has some properties which define the options for the component. The properties are (all properties are optional):

• leftButtonContent
  It’s the content for the left button that is the button for showing the previous image. The content is ReactNode object.
  The default value:

  <div style={ {
    borderColor: 'white',
    borderWidth: '3px',
    borderRightWidth: '0px',
    borderTopWidth: '0px',
    boxSizing: 'border-box',
    height: '11px',
    rotate: '45deg',
    width: '11px',
  } }></div>


  The element above shows a left arrow.

• maxVisibleCount
  The maximum count of visible images. This component does not only support one visible image at a time. You may set the value between 1 to 6. By using maxVisibleCount is higher than 1, it can act as the list of thumbnails for the primary carousel. You may see in the example how to implement it.
  The default value: 6

• ratioX
  Along with ratioY, it defines the ratio between width and height of each image in the slider.
  The default value: 1

• ratioY
  Along with ratioX, it defines the ratio between height and width of each image in the slider.
  The default value: 1

• rightButtonContent
  It’s the content for the right button that is the button for showing the next image. The content is ReactNode object.
  The default value:

  <div style={ {
    borderColor: 'white',
    borderWidth: '3px',
    borderBottomWidth: '0px',
    borderLeftWidth: '0px',
    boxSizing: 'border-box',
    height: '11px',
    rotate: '45deg',
    width: '11px',
  } }></div>


  The element above shows a right arrow.

• styles
  Defines the CSS style for the elements inside the slider component. It is an object whose some properties which each defines the CSS style for specific element. styles has the following structure:

  {
    bgImage?: TStyle,
    button?: TStyle,
    buttonAtFirst?: TStyle,
    buttonAtLast?: TStyle,
    buttonHover?: TStyle,
    container?: TStyle,
    image?: TStyle,
    imageHover?: TStyle,
    imageSelected?: TStyle,
    imagesBox?: TStyle,
    imagesBoxAtFirst?: TStyle,
    imagesBoxAtLast?: TStyle,
  }


  which TStyle is

  {
    className?: string,
    style?: CSSProperties,
  }


  className is CSS class name(s) and style is the inline style.

  To explain which element that applies which property, we must know HTML structure of the slider component. HTML code below depicts the slider HTML structure and where each styles property is used:

  <div {...styles.container}>
    <button type='button' {...styles.button} >
        {leftButtonContent}
    </button>
    <div {...styles.imagesBox}>
        <Image key={1} />
        <Image key={2} />
        <Image key={3} />
        ...
    </div>
    <button type='button' {...styles.button}>
        {rightButtonContent}
    </button>
  </div>


  which Image consists of the following elements:

  <div {...styles.bgImage}>
    <Rect
        ratioX={ratioX}
        ratioY={ratioY}
    >
        <img {...styles.image} />
    </Rect>
  </div>


  Some styles properties don’t show up in HTML above. They apply at a certain condition:

  • buttonAtFirst is applied when the slider reaches the first image. It affects to the left button. It will be merged with button (Therefore, you only need to define what those differs from button).

  • buttonAtLast is applied when the slider reaches the last image. It affects to the right button. It will be merged with button.

  • buttonHover is applied when the mouse over the slider. It affects to both buttons. It will be merged with button. You must consider the device with touch-screen that may not be equipped by a mouse.

  • imageHover is applied to the image when the mouse over it. It will be merged with image. You must consider the device with touch-screen that may not be equipped by a mouse.

  • imageSelected is applied to the selected image (when the user clicks/touches it). It will be merged with image.

  • imagesBoxAtFirst is applied to the div element which applies imagesBox when the slider reaches the first images. It will be merged with imagesBox.

  • imagesBoxAtLast is applied to the div element which applies imagesBox when the slider reaches the last images. It will be merged with imagesBox.

    If the slider reaches the first image and also the last one (maxVisibleCount is less or equals to the count of images) then imagesBox, imagesBoxAtFirst and imagesBoxAtLast will be merged.

  bgImage and imagesBox have the required CSS properties. bgImage always has the following properties:

  align-self: center;
  box-sizing: border-box;
  flex: none;
  flex-basis: calc(1/maxVisibleCount * 100%);


  imagesBox always has property:

  display: flex;


  You don't need to define the required properties, they will be set automatically.

SimpleImagesSlider props

Only images is required, the other ones are optional.

• baseSrc
  It’s the base URL for all images inside the slider. Those images usually comes from the same source. Therefore, they usually have the same URL prefix.

• images
  It’s an array of image URL and optionally the value for alt attribute of img element. Each item in the array has type:

    string | {src: string, alt?: string}


  If it’s a string then it’s for src attribute.

• onChange
  It’s a function whose type of

    ({selected: number, start: number}) => any


  selected is the index number of selected image (when the user clicks/touches the image). start is the start index number of the visible images. There may be more than one visible images. This function is invoked every time any change to selected index and/or start index.

• ref
  As the other React components, this prop is get the instance object of the component. This ref prop will return an object whose properties:
  • startIndex is to get/set the start index of visible images. Setting this property will slide the visible images.
  • selectedIndex is to get/set the selected image index. If the new selected image won’t be visible because its index is not between start and end index of visible images then it will also set the start visible index so that the new selected index will be visible.
    This property returns -1 if no selected image. Setting it to the value less than zero or greater than or equal to the count of images will cause no selected image.

  Example:

  import SimpleImagesSlider, {type RefInstance} from '@react-packages/simple-images-slider';

  ...

  const slider = React.useRef<RefInstance>(null);
  ...
  <SimpleImagesSlider ref={slider} ... />
  ...
  <button onClick={() => { if (slider.current) slider.current.selectedIndex = 0; } }>Select First Image</button>
  ...


• selectedIndex
  is the index number of the selected image. After this prop is set to a new value, the image at the selectedIndex-th position will be selected. But after that, the user can still change the selected image by clicking/touching another image. Because of this, the current selected image index may be different from the current value of selectedIndex prop. If after that, we try to set selectedIndex prop to the same number, in order to select the image at the selectedIndex-th position, it won’t work because we set the same value for selectedIndex prop that won’t trigger re-rendering. To cope with this problem, we can use new Number(selectedIndex) for the new value as shown in the following example:

  const [index, setIndex] = React.useState<number| Number>(0);

  ...

  <SimpleImagesSlider selectedIndex={index} ...  />

  ...

  <button
    onClick={ () => {
       /* Always selects the first image even if the user has selected another image */
      setIndex(new Number(0))
    } }
  >Select First Image</button>


  Please update to version 1.0.1 for this example works
